Key Features
- Built with a lip flange to fit securely on the top of the port for faster install and removal
- Designed with a hollow body for lighter weight and easier install

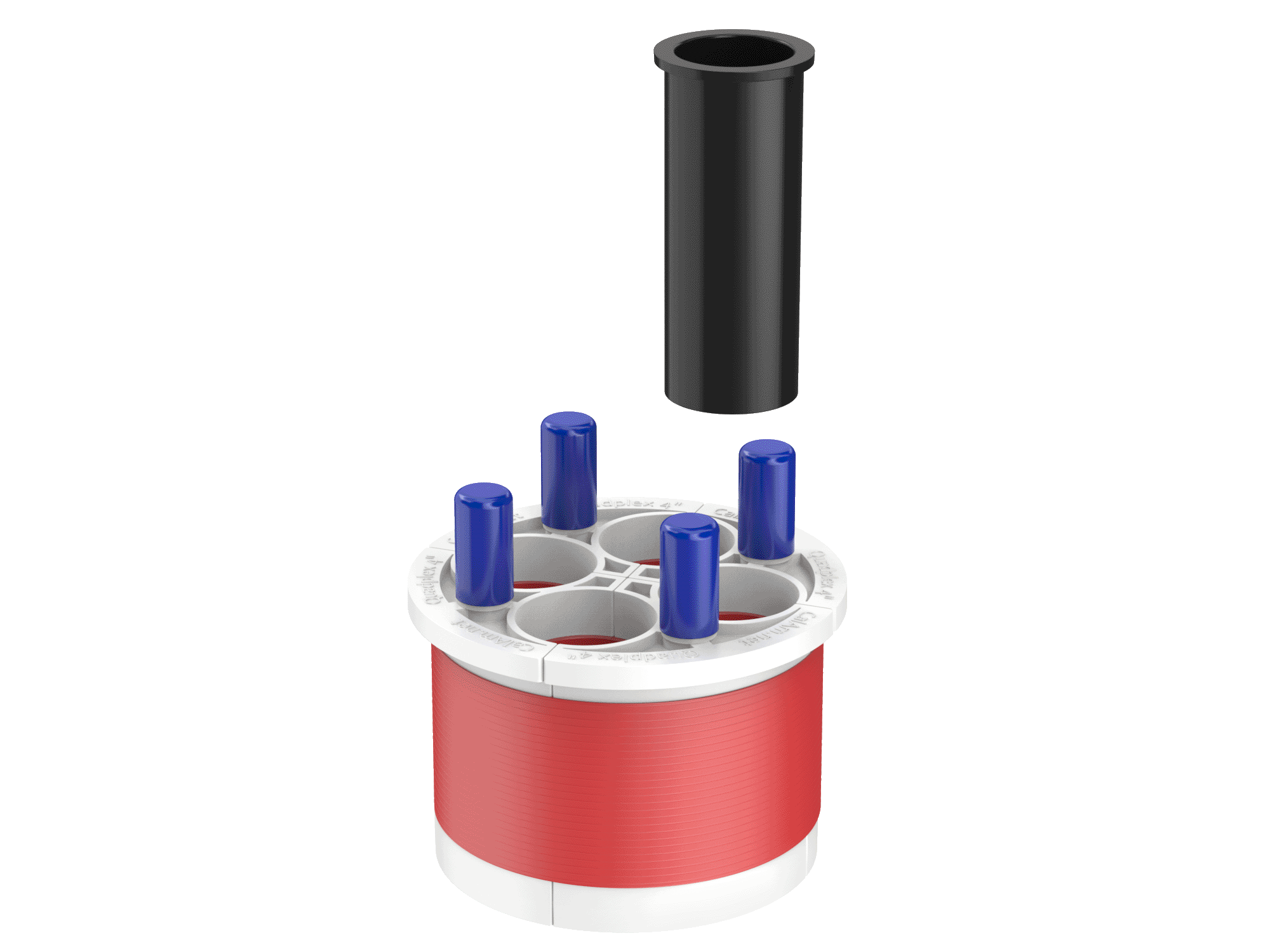

Easily seal empty Wedge Seal™ Entry Seal ports
Cal Am Hole Plugs are a convenient and efficient solution for sealing vacant ports within our Wedge Seal™ Entry Seal product line. They are a cost-effective alternative to other sealing methods such as tape or foam, saving labor time and project costs. Designed to work specifically with our Entry Seals, these plugs are easy to install and remove as needed. Part of the original JackMoon® product line, Cal Am is now offering a direct cross product in two sizes.
Cal Am Hole Plugs are made from high-quality materials to ensure a tight and secure seal, preventing any leaks or contamination. They are suitable for a variety of applications, including electrical underground work, and other construction projects. Hole plugs are engineered with a hollow body to save on weight costs and faster installation.
Download Cut Sheet| PRODUCT NUMBER | IMAGE | DATA SHEET | JACKMOON REF# | PORT DIAM RANGE (IN) | PORT DIAM RANGE (MM) | PLUG LENGTH (IN) | PLUG LENGTH (MM) | CASE QUANTITY |
|---|---|---|---|---|---|---|---|---|

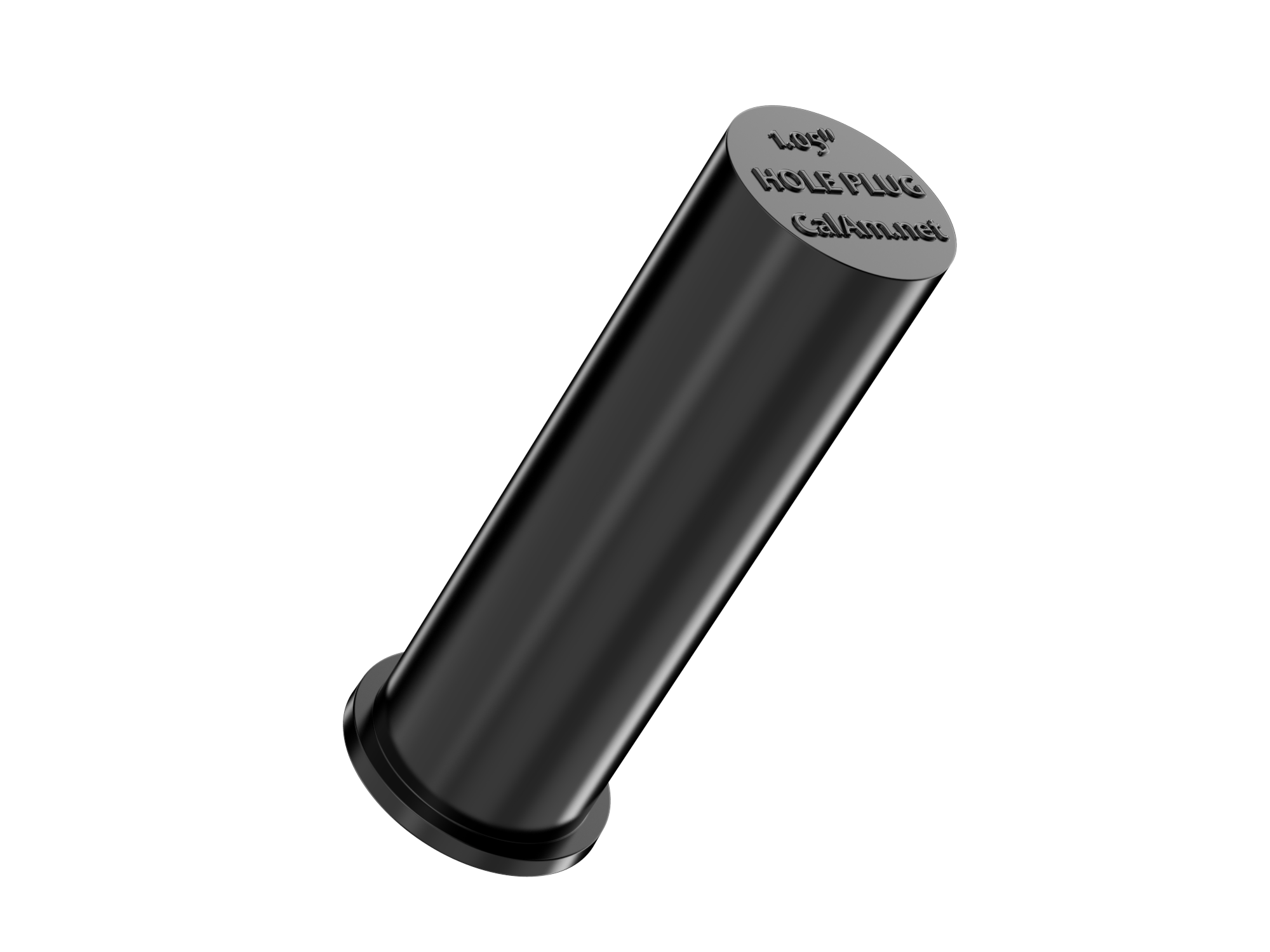

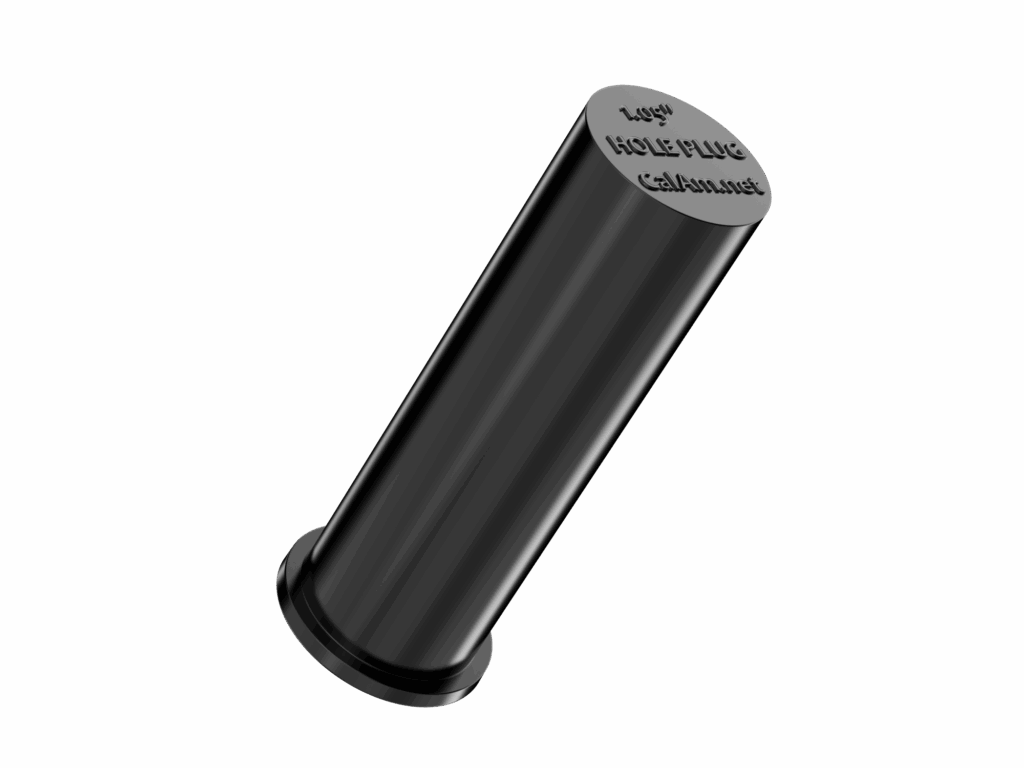

| 2260-105 | |
 |
1.05 | 26.67 | 3.45 | 87.63 | 30 | |

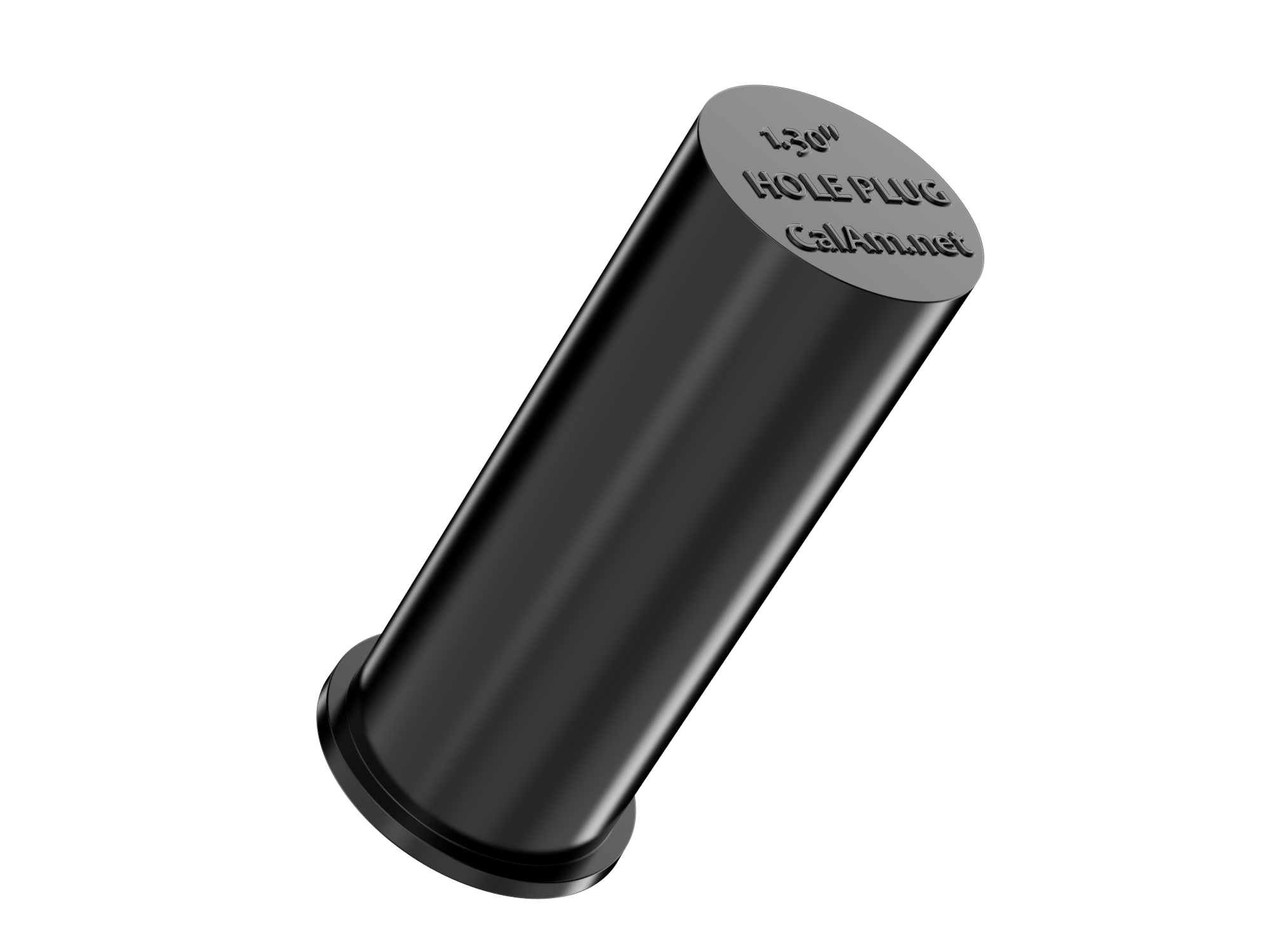

| 2260-130 |  |
|
JM-HOL-136JMH136 | 1.30 | 33.02 | 3.45 | 87.63 | 20 |

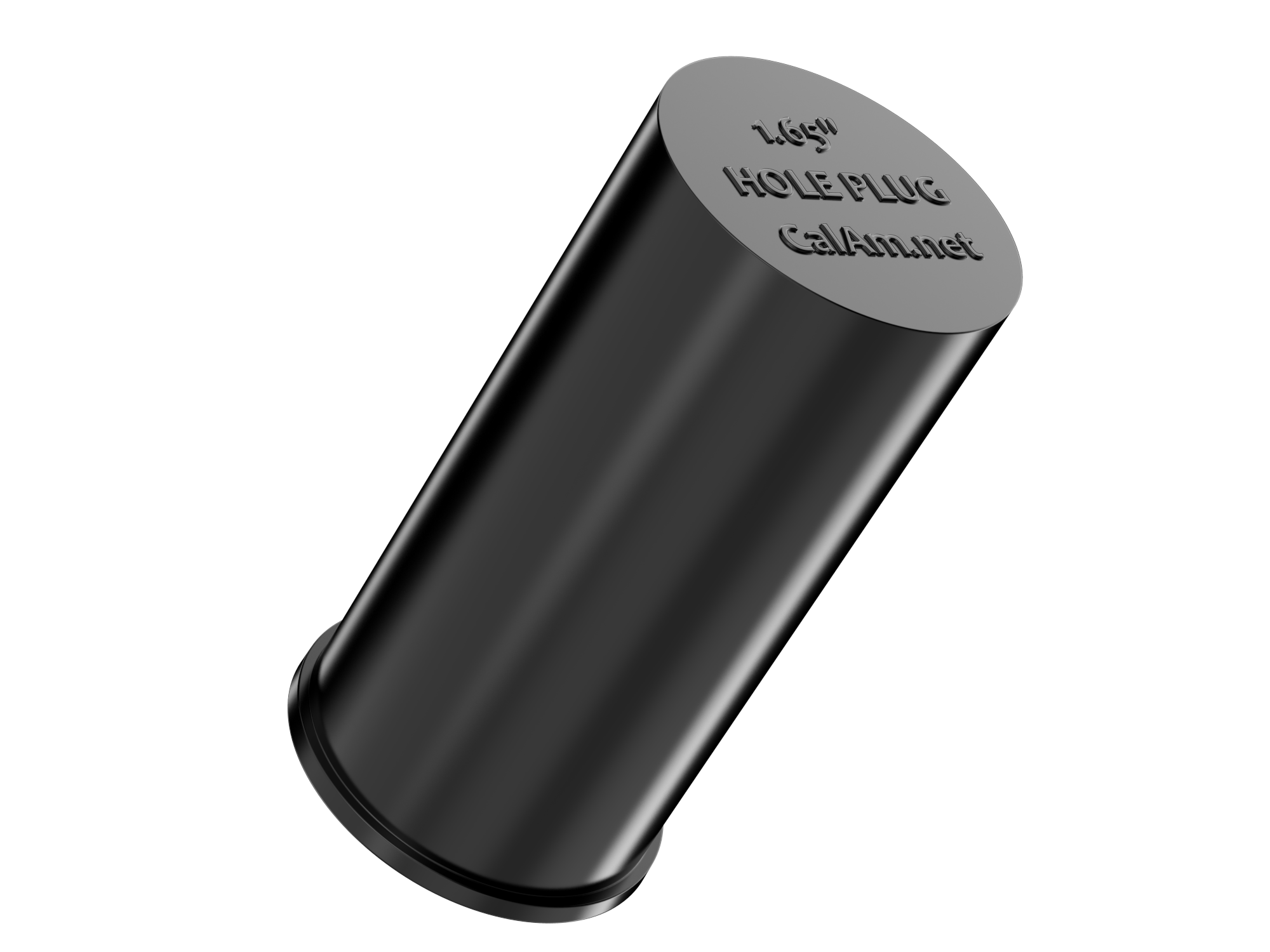

| 2260-165 |  |
|
JM-HOL-167JMH167 | 1.65 | 41.91 | 3.44 | 87.37 | 20 |
| PRODUCT NUMBER | COMPATIBLE CAL AM WEDGE SEAL™ ENTRY SEALS |
|---|---|
| 2260-105 | 7140-115 7340-105 7350-105 7360-105 7440-105 7450-105 7460-105 |
| 2260-130 | 7140-135 7340-130 7350-130 7360-130 7440-130 7450-130 7460-130 |
| 2260-165 | 7140-195 7340-165 7350-165 7360-165 7450-165 7460-165 |
